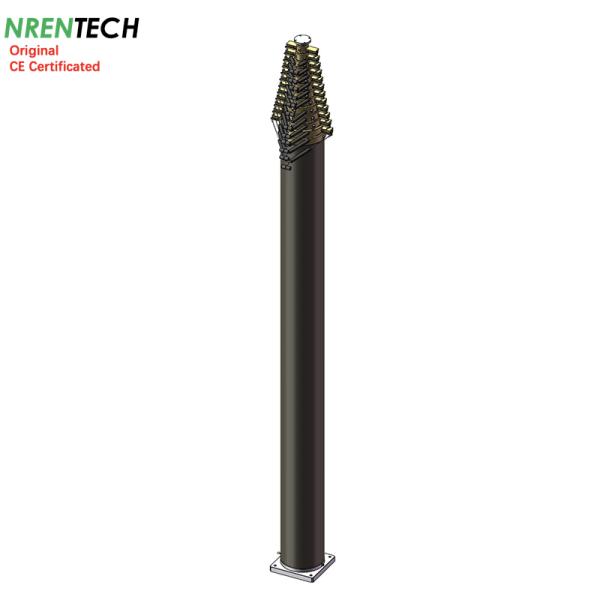

30m lockable pneumatic telescopic mast 30kg payloads for mobile broadcasting antenna NR-4.4-30-30L-13S-51-316

Product Categories
Huaian Nengren Manufacture and Trade Co.,Ltd.
Contact Now

30m lockable pneumatic telescopic mast 30kg payloads for mobile broadcasting antenna NR-4.4-30-30L-13S-51-316

Brand Name : NRENTECH

Model Number : NR-4.4-30-30L-13S-51-316

Certification : ISO/CE

Place of Origin : CHINA

MOQ : 1

Price : USD 20000/unit FOB Shanghai

Payment Terms : T/T, Western Union

Supply Ability : 200 units/month

Delivery Time : 20 working days

Packaging Details : wooden box.

extended height : 30m

retracted height : 4.4m

payloads : 30kg

working air pressure : 0.2Mpa/29PSI

working temperature : -15~85℃

collar style : locking collar

number of sections : 13 sections

section dia. : 51mm~316mm

default accessories : 1x top flange, 1xbottom flange, 1x air hose pipe

optional accessories : side mounting brackets, guying lines, electric air compressor

unit weight : 465kg approx.

guarantee : 5 years

Contact Now

30m Pneumatic Telescopic Mast-30kg Payloads-4.4m retracted height NR-4.4-30-30L-13S-51-316

30m Pneumatic Telescopic Mast 30kg payloads
Item #: NR-4.4-30-30L-13S-51-316
1> Extended Height: 30m
2> Retracted Height: 4.4m
3> Top Payloads: 30kg
4> Working air pressure: 0.2Mpa/29PSI
5> Working temperature: -15~85 ℃
6> Collar style: Locking Collar
7> Number of sections: 13 sections
8> Section dia. 51mm~316mm
9> Materials: aluminum alloy 6063T5 materials
10> Default Accessories: 1x top flange, 1x bottom flange, 1x air hose pipe
11> mast weight: 465kg approx.
Charging accessories: electric air compressor (wireless remote control available), guying ropes kits for 120km/h), ground mounting brackets, vehicle side mounting brackets, air controller

30m lockable pneumatic telescopic mast 30kg payloads for mobile broadcasting antenna NR-4.4-30-30L-13S-51-31630m lockable pneumatic telescopic mast 30kg payloads for mobile broadcasting antenna NR-4.4-30-30L-13S-51-31630m lockable pneumatic telescopic mast 30kg payloads for mobile broadcasting antenna NR-4.4-30-30L-13S-51-316

30m Lockable Pneumatic Telescopic Mast-30kg Payload
NR-4.4-30-30L-13S-51-316
30m lockable pneumatic telescopic mast 30kg payloads for mobile broadcasting antenna NR-4.4-30-30L-13S-51-316
Extended Height : 30 m 98.4 ft 　
Retracted Height : 4.4 m 14.4 ft 　
Vertical Payload : 30 kg 66 lb 　
Working air pressure : 0.2 Mpa 29 PSI 　
Collar Type : Locking (Automatic Extention, Manual Retraction)
Inside Electric Wires : 　 　 　 　
Number of sections : 13 　 　 　 　
Top section diameter : 51 mm 2.0 in 　
Basement section diameter : 316 mm 12.4 in 　
Mast Weight : 480 kg 1056 lb 　
Working temperature : -25~65 Celsius Degree
Materials : Aluminum alloy 6063T5
Default accessories : top flange
bottom flange
air hose pipe
air control manual
Retraction operation tool
Optional Accessories : Electric air compressor AC220V/50hz
Guying Rope Kits 5x4 (5 layers, 4 ropes each layer, 4 mounting spikes, mounting radius 30m)
Side Mounting Bracket Steel Material
Ground mounting Quadpod Stainless Materials
Rotation Basement Manual Rotation
Remote control kit 12VDC
data update on 20230702
